1. Heat-Resistant Champions Inside the Engine: GH2136 & Inconel 713C
Jet engines operate in zones where temperatures soar above 950°C. That’s where GH2136 alloy and Inconel 713C alloy come into play.
GH2136: an iron-nickel precipitation-hardened alloy, especially known for its use in cast turbine components.
Inconel 713C: a cast nickel-based alloy, is ideal for turbine blades and vanes, where both strength and heat resistance are crucial.
The successful application of these two high-temperature alloys has effectively improved the safe operation ability of the engine in extreme environments.

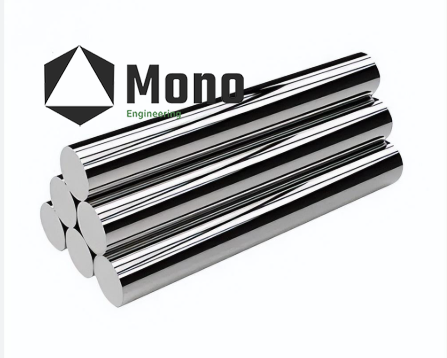

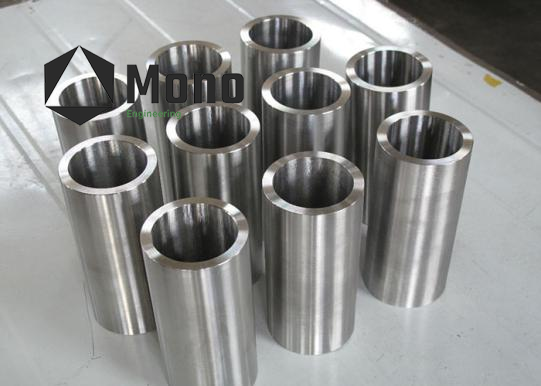

Inconel 713C product GH2136 product
2. Driving Efficiency: Structural Integrity & Corrosion Resistance
Efficiency in jet engines depends on material reliability under pressure and heat.
GH2136 alloy resists deformation even at high rotational speeds, thanks to its exceptional creep resistance.
Inconel 713C alloy delivers superior oxidation and corrosion resistance, crucial for components exposed to intense combustion.
These properties help extend engine life, reduce downtime, and maximize overall thermal performance-making GH2136 and Inconel 713C indispensable to modern aerospace engineering.
Character | Inconel 713C | GH2136 |
Substrate type | Nickel-based casting alloy | Iron-nickel-based deformable alloy |
Maximum operating temperature | 900℃ | 700℃ |
Strengthening mechanism | y' phase (Ni3Al) precipitation strengthening | y' phase (Ni₃Ti) precipitation strengthening |
Typical process | Used in cast state, supports hot isostatic pressing repair | Forging and rolling, weldable |
Density | 8.0 g/cm³ | 8.03 g/cm³ |
Main advantages | High temperature strength, creep resistance, thermal fatigue performance | Long-term structural stability, welding performance |
Table: GH2136 vs Inconel 713C: Performance at a Glance
3. Beyond Aerospace: Broad Applications Across Industries
While GH2136 and Inconel 713C alloys are vital in jet engines, their applications extend well beyond aviation. These materials are now integral to gas turbines, space propulsion systems, and high-temperature components in nuclear energy. Their excellent workability and castability make them ideal for producing complex, high-performance parts across many advanced industries.

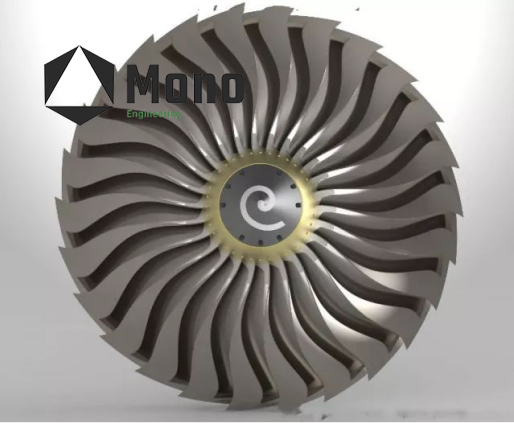

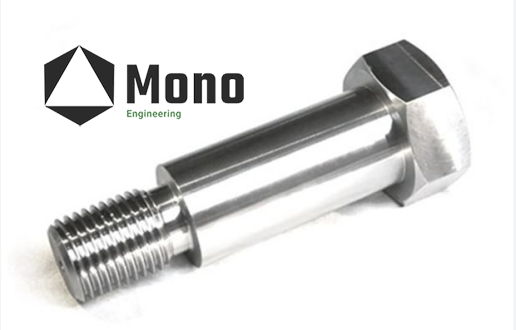

Pic 1: Turbine blade Pic 2: Steam turbine fasteners
Typical Applications of GH2136 / Inconel 713C in Jet Engines
