Introduction

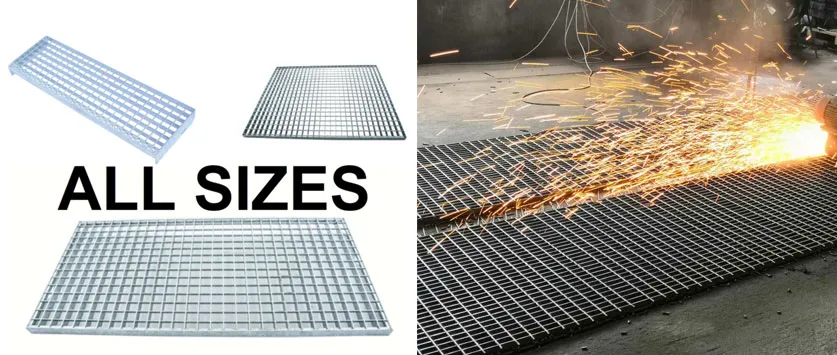

Stainless steel grating is a steel grating product made of stainless steel flat steel and horizontal bars arranged at a certain distance and welded by high-voltage resistance pressure welding machine automation equipment. It is processed by cutting, drilling, hemming and other processes to meet customer requirements. The product. It has strong anti-corrosion properties, clean appearance, and ideal decorative effect, but the price is generally higher.

Materials:

1.304 has average corrosion resistance, is the most commonly used, and is recommended.

2.316 (316L) has strong corrosion resistance and is more expensive.

3.301 has weak corrosion resistance and is cheaper.

Custom material and specifications are available based on project requirements.

Surface Treatment

1.Pickling, the surface is matte off-white.

2. Electrochemical polishing, the surface is brighter.

a. After pickling and passivation, the surface will be matte gray-white.

b. Electrochemical polishing, the surface is brighter and the finish is higher.

c. The finished product is heated and polished, then electrochemically polished, and then chrome plated to achieve a mirror effect.

Installation of steel grating

1.Welding is advisable for those of permanent use without being removed/dismantled. Just weld it onto the support with specific location at the first piece of flat steel of each corner of the plate. Fillet weld is required with weld length not less than 20mm and height not less than 3mm. Daxing Brand Installation Clips, which will not destroy the zinc coat and be easy to remove, are available, Each ganel shall use at least four installation clips.

2.For the larger panels preferably some more clips are required to fix to the available support members. Refer to the following table when selecting installation clips:

Type A-comprising a top clip with double saddle a lower clip with teeth and a M10(or M8).

Type B-comprising a top clip with duble saddle(of which one saddle can secure the two bear bars of abjacent panels),a lower clip with teeth and a M10(or M8).

Type C-comprising a top clip with double saddle and a M10(or M8).

Application:

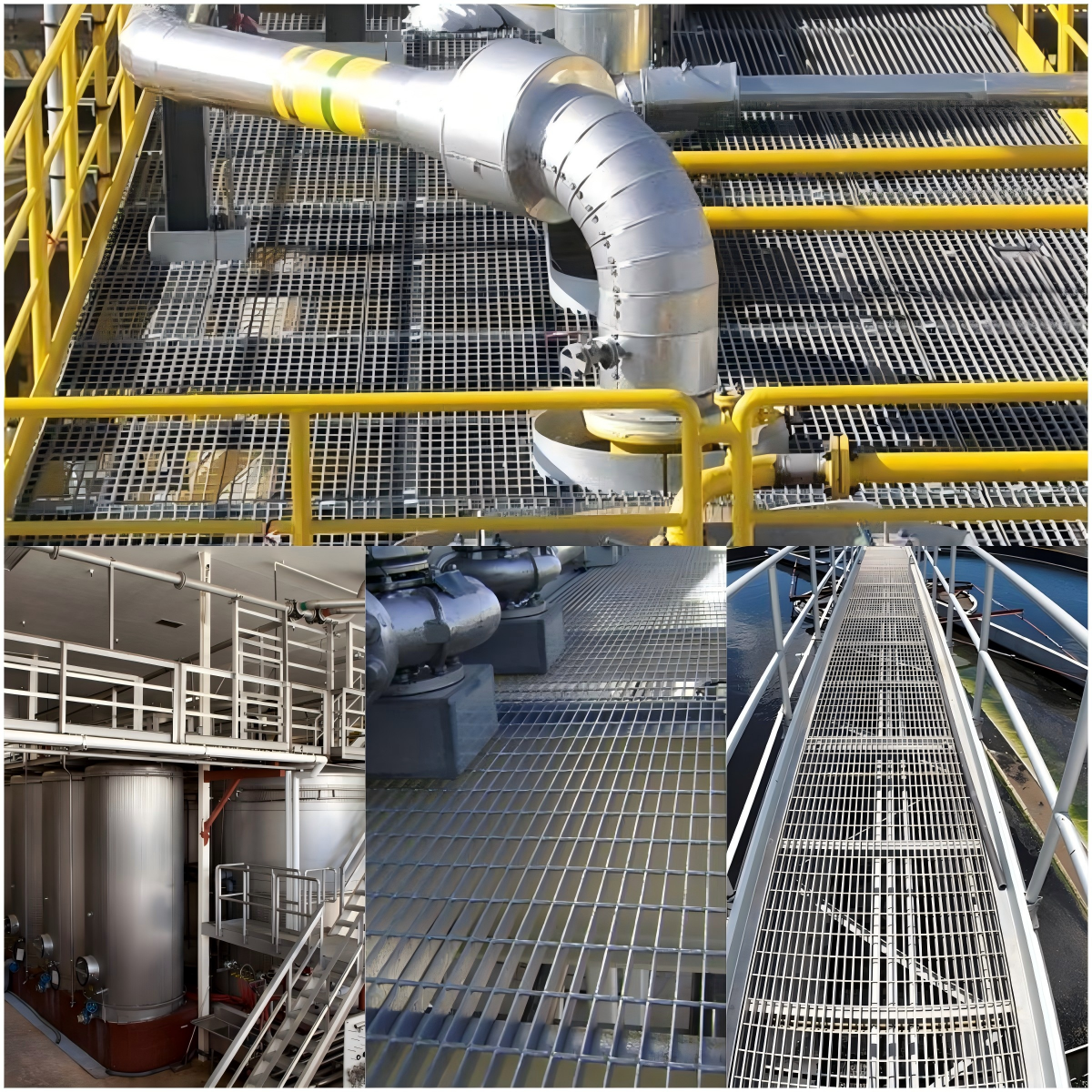

Stainless steel grating bars are widely used in environments requiring high corrosion resistance, hygiene, and durability. They are commonly applied in platforms, walkways, drainage systems, and structural flooring across industries such as food processing, pharmaceuticals, chemical plants, and marine engineering. With excellent resistance to moisture, chemicals, and harsh conditions, stainless steel grating bars ensure long-lasting performance and reliable safety in demanding applications.

Package

• Steel strap bundling for secure fastening

• Pallet packaging for easy loading and unloading

• Wooden cases for additional protection (if required)

 Why Choose Us?

1.ISO Factroy Support

We focus on providing reliable Stainless steel grating bar for industrial and engineering projects, including pressure equipment, oil & gas, and fabrication industries.

With strong supply chain integration and strict quality standards, we ensure consistent performance, competitive pricing, and on-time delivery for long-term cooperation.

2.Qality control:

Strictly quality control system, before shiping out, our QC will measuring and test all products, include outdiameter&Thickness&Length&Surface treatment. Meanwhile,We will arrange  material to do laboratory test. After all match requirments,We will send these trest result to customer to get approval.

Strict QC procedure make sure customer satified with out goods, and this is core of long time cooperation.

3.Best After sales service

Beside of Quality control system, We have strong after sales service team, After goods hand over, our sales teams will contact customer in time and make sure customer can solve question in short time, most importantly, our sale service team are engineer and they know products deeply, this save communication time.

MONO Group is one of Titanium alloy, Nickel alloy,Stainless steel, Aluminum alloy manufacturer&Supplier&Wholesaler from China,We can supply steel grating and Perforated sheet and other metal perforated products as per customized size.,pls contact us freely for your RFQ to info@monokj.com
