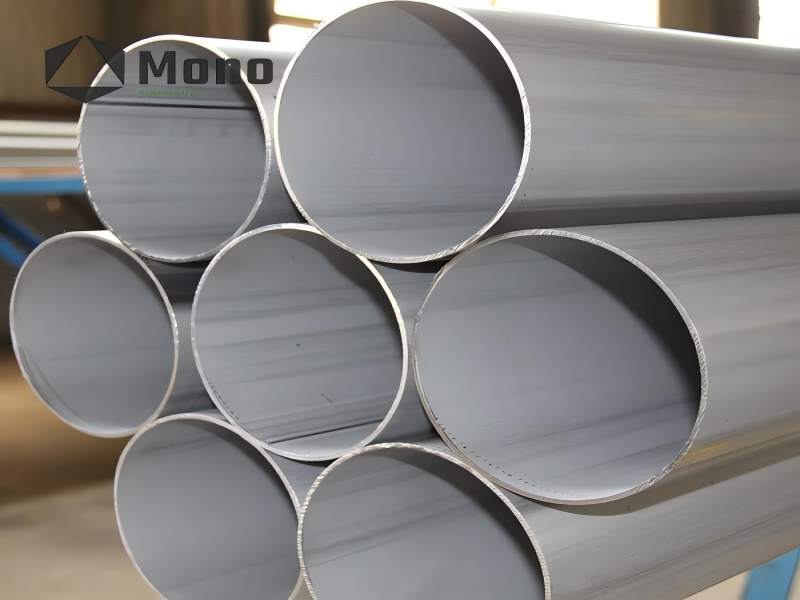

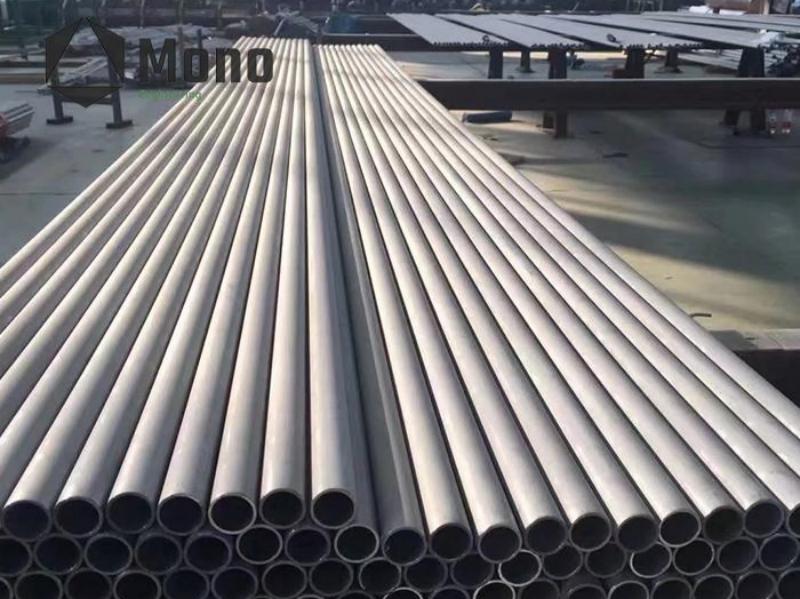

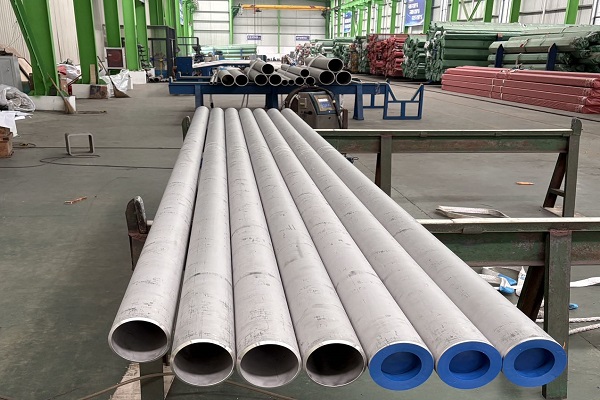

Mono Group, A professional TP316 stainless steel pipe solution provider, offer a varies range of an 316 austenitic stainless steel pipe. SS 316 pipe addition of Mo element greatly improves the corrosion resistance and high temperature strength. It can withstand high temperatures of 1200-1300 degrees and can be used under harsh conditions.Its main uses include heat exchangers for pulp and papermaking equipment, dyeing equipment, pipes, and exterior materials for buildings in coastal areas.
Composition | C | Si | Mn | P | S | Cr | Ni | Mo |
Min | \ | \ | \ | \ | \ | 16.00 | 10.00 | 2.00 |
Max | 0.08 | 0.75 | 2.00 | 0.045 | 0.03 | 18.00 | 14.00 | 3.00 |
Rigidity | Tensile strength | Yield strength | Elongation |
≤217HBW | ≥515MPa | ≥205MPa | ≥35% |
Density | Melting points | Specific heat | Magnetism | Resistivity | Thermal conductivity | Linear expansivity |
8.0g/cm3 | 1375-1420℃ | 0.502J/(g.℃） | \ | 0.72×10-6Ω·m(20℃) | 16.0W/(m.k)(100℃) | 16.5×10-6/K(20℃) |
There have three widely used standard in production
1. ASTM A312 TP316 pipe is an austenitic stainless steel pipe,it produced as per ASTM A312 Standard and designed for high-temperature and corrosion-resistant service,This standard include seamless stainaless steel pipe, welded stainelss steel pipe, and heavily cold-worked stainless steel pipes.
If project system request pressure pipe for above three type of pipe, ASTM A312 standard is best choice, and this standard is mature standard for make production. ASTIM A312 Standard include Grade 316 stainless steel, beacuse grade 315 contains molybdenum (Mo), which significantly enhances its resistance to chloride corrosion, making it ideal for harsh and marine environments.
2. ASTM A269 TP316 tube is an austenitic ss tubing, this standard manufactured for General service / Instrumentation applications.This standard is different with ASTM A312 TP316 pipes and usually called "Tube", Althoughmany customers refer to it as “pipe,” It general used standard for Heat exchangers& Instrumentation tubing&Chemical processing systems&Marine equipment&Food and pharmaceutical industries &Condensers and fluid transfer systems
3. ASTM A213 TP316 tube is an austenitic stainless steel tube designed for high-temperature and high-pressure service,This standard have strict request for production, so it especially in boilers, superheaters, and heat exchangers.Although many users refer to it as “pipe,” ASTM A213 actually covers seamless stainless steel tubes, manufactured with tighter tolerances and stricter quality requirements compared to general piping standards.
Request Excellent resistance to pitting and service corrosion
Project request TP316 stainless steel pipe have Good performance in high-temperature condition
Pipe need Suitable for pressure and thermal systems
Site need High dimensional accuracy and quality consistency accordingly to ASTM A213
Excellent weldability and fabrication properties
MONO Group is one of Austenitic stainless steel, Duplex stainless steel and Precipitation-hardened stainless steel etc manufacturer&Supplier&Wholesaler from China,We can supply ASTM /DIN/ISO/GB stndard high quality alloy plate,sheet,round bar,tube.pipes,fittings,flange,pls contact us freely for your RFQ to info@monokj.com
