Introduction

Monel 400 Alloy (UNS N04400) is a nickel-copper alloy containing approximately 67% nickel and 23% copper, with iron and manganese additions. This nickel copper alloy is a single-phase solid solution that can only be hardened by cold working. This corrosion resistant Monel 400 delivers excellent resistance to seawater, hydrofluoric acid, sulfuric acid, hydrochloric acid, and alkalis. It is highly resistant to sea water and steam at high temperatures, as well as to salt and caustic solutions. This Marine grade Monel 400 is the preferred material for marine engineering, shipbuilding, chemical processing, oil and gas, heat exchangers, desalination equipment, and pump and valve components. Available in Monel 400 plate, sheet, pipe, tube, bar, round bar, wire, fittings, flanges, and forgings, in hot rolled, cold rolled, cold drawn, and annealed conditions.

Chemical components(%)

Mechanical properties

Physical properties

Monel 400 Available Products and Standards

1. ASTM B127 (Standard Specification for Nickel-Copper Alloy Plate, Sheet, and Strip)

Type: Plate/Sheet/Strip

Size Range:

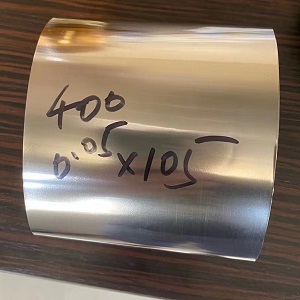

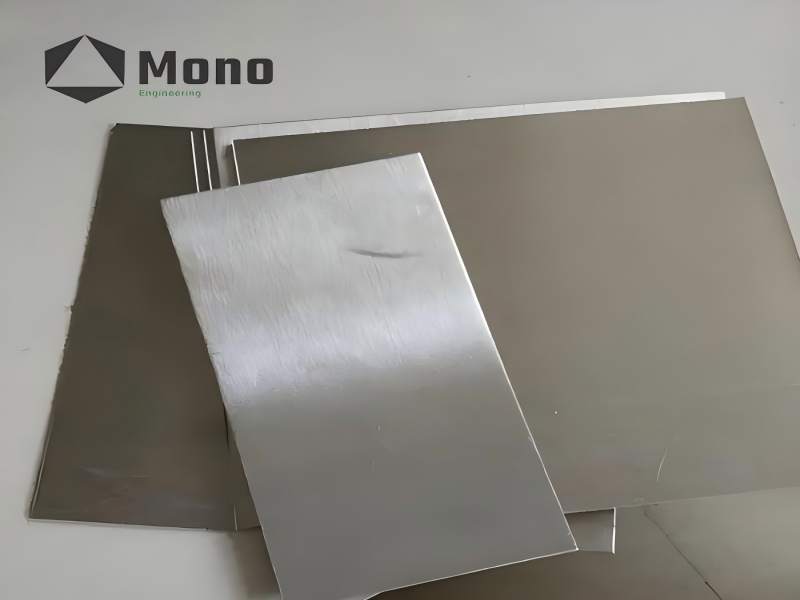

• Monel 400 Sheet / Strip: 0.5 – 5.0 mm thick × up to 1000 mm wide

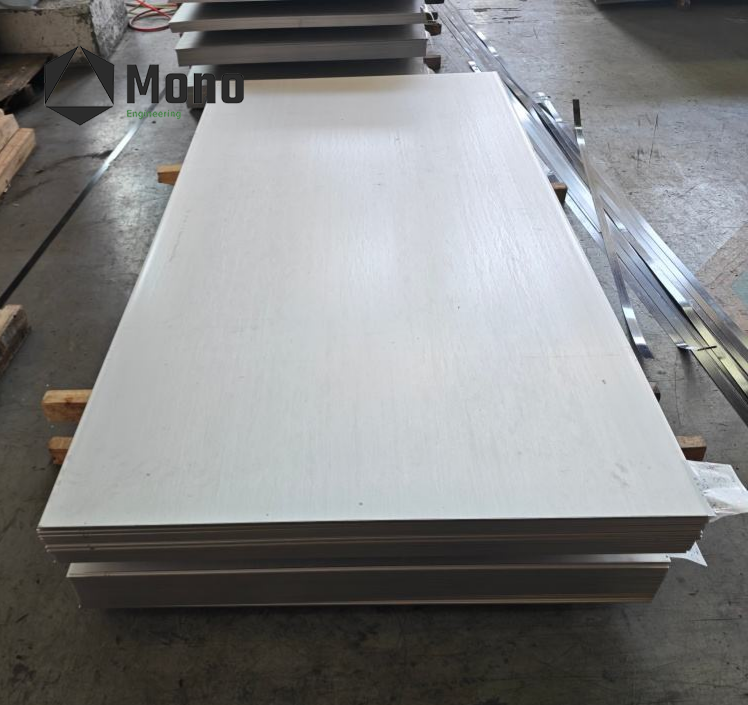

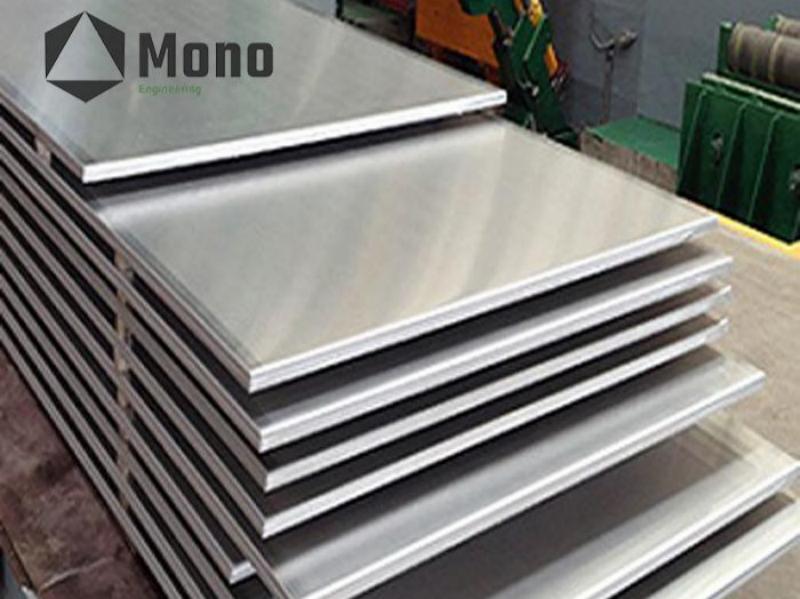

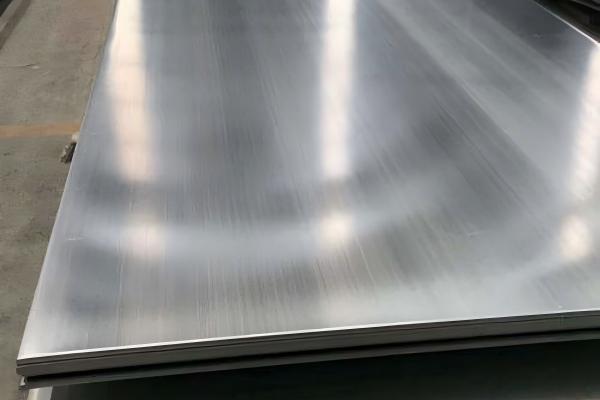

• Monel 400 Plate: 5.0 – 180 mm thick × up to 3000 mm wide

Surface: Annealed, Hot rolled, Cold rolled, Pickled, Bright

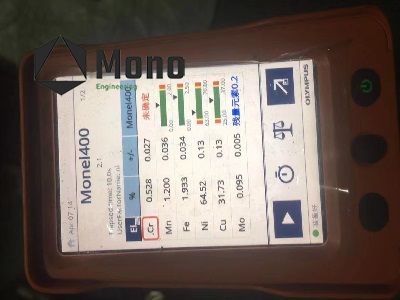

Testing: Chemical analysis, tensile test, hardness, magnetic permeability (optional), corrosion test (seawater, acid resistance), dimensional inspection

2. ASTM B164 (Standard Specification for Nickel-Copper Alloy Rod, Bar, and Wire)

Type: Bar (Round / Square / Hex / Flat)/Rod/Wire

Size Range:

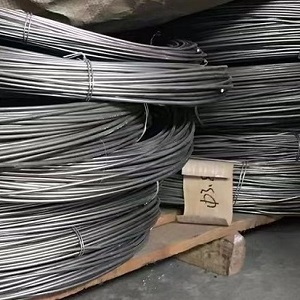

• Monel 400 Wire: 0.01 – 15.0 mm dia (coils or straight)

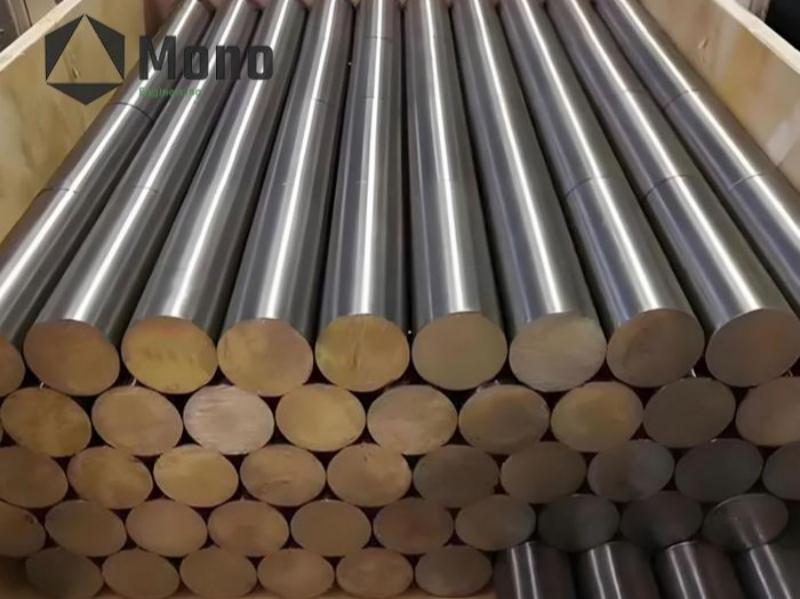

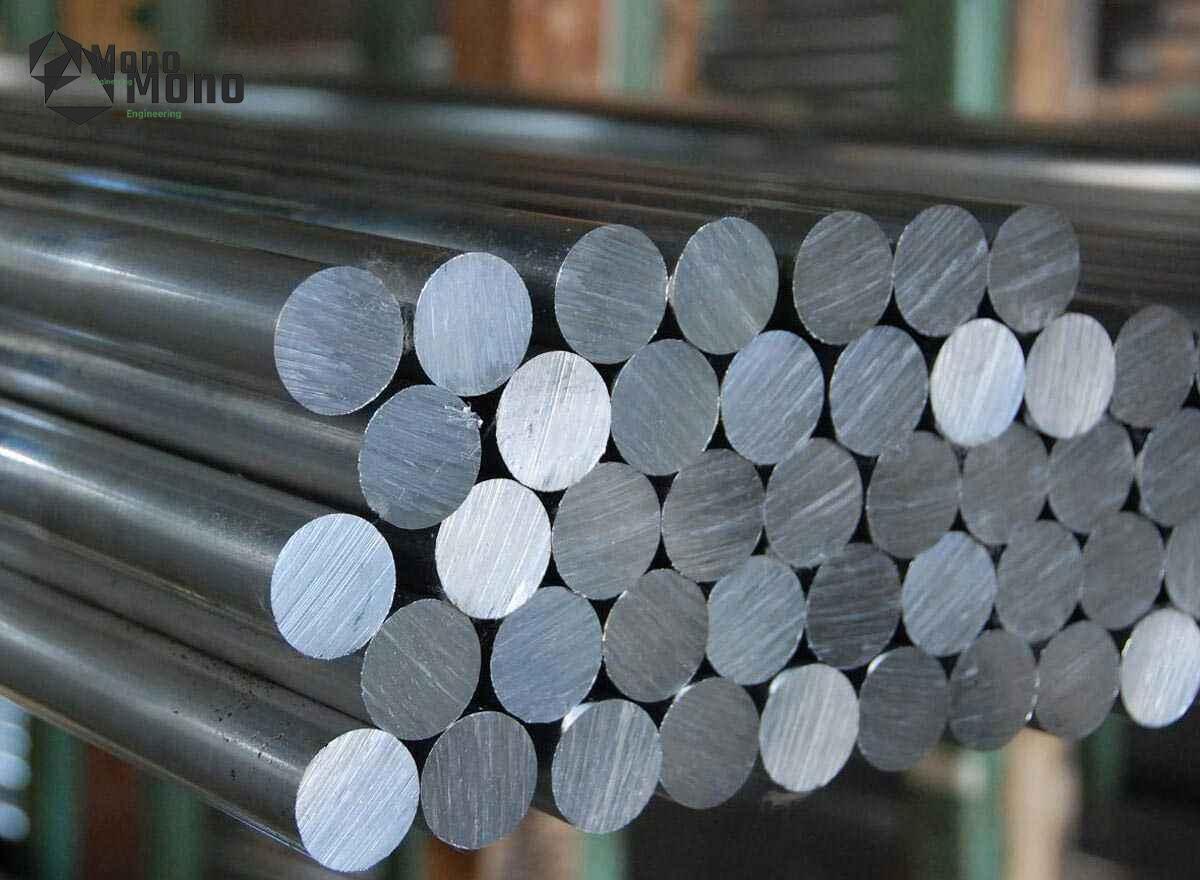

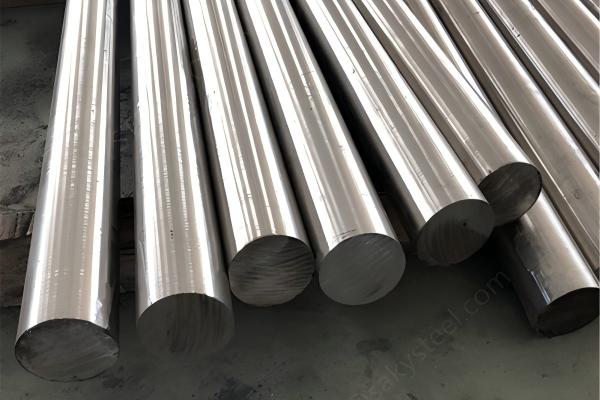

• Monel 400 Bar / Rod: 8 – 355 mm dia (cold drawn or hot rolled)

Surface: Annealed, Cold drawn, Ground, Pickled, Bright

Testing: Chemical analysis, mechanical test (tensile, yield, elongation), eddy current test, dimensional inspection

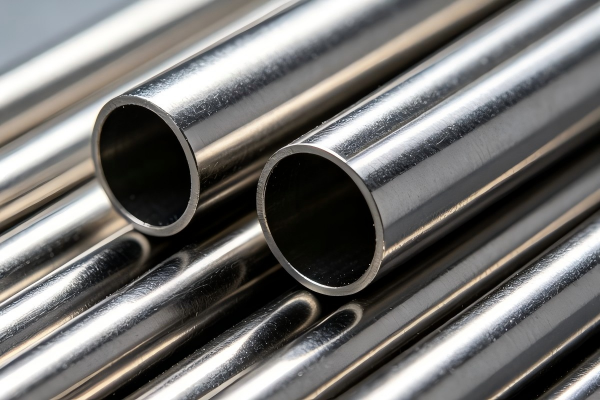

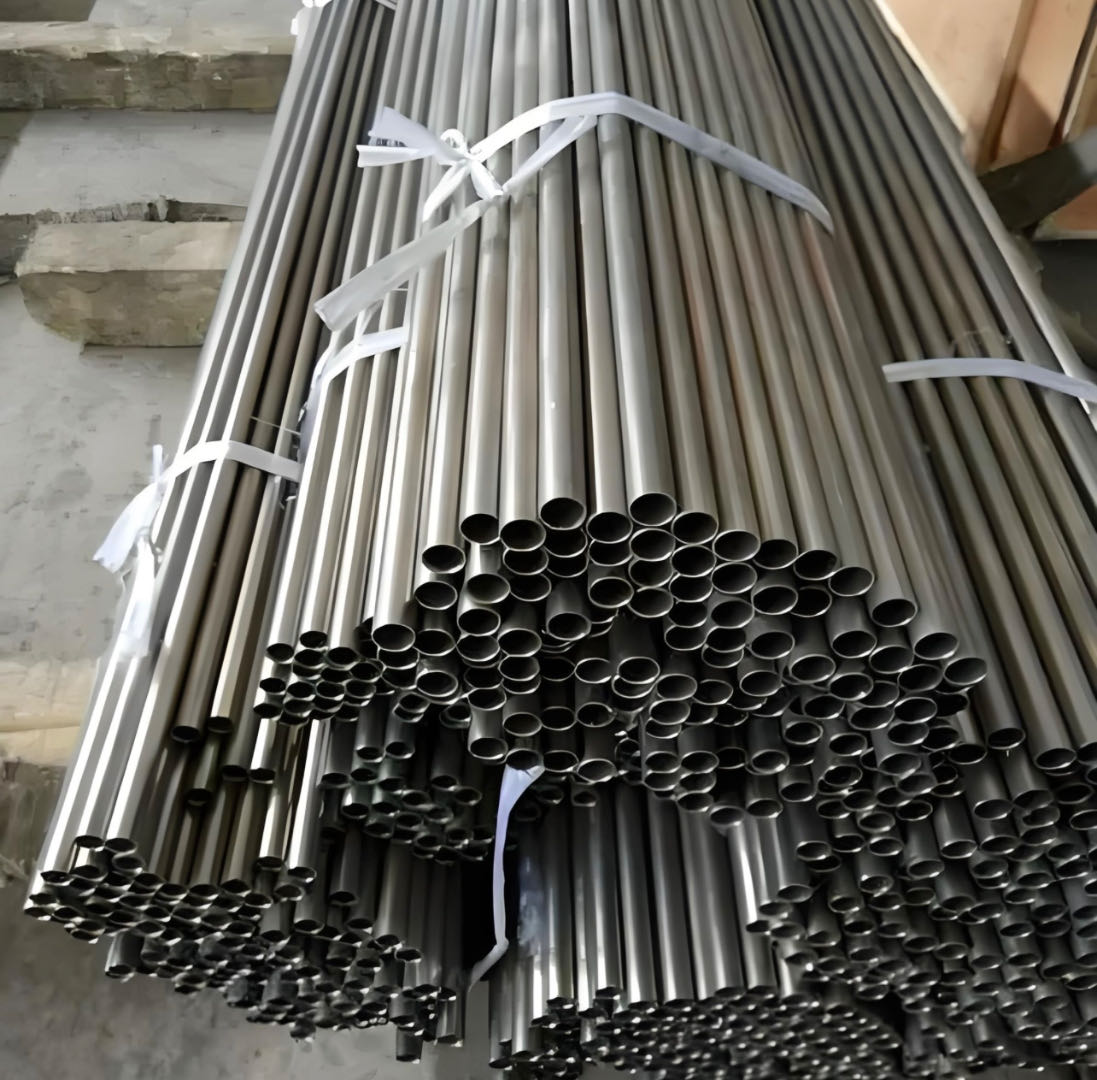

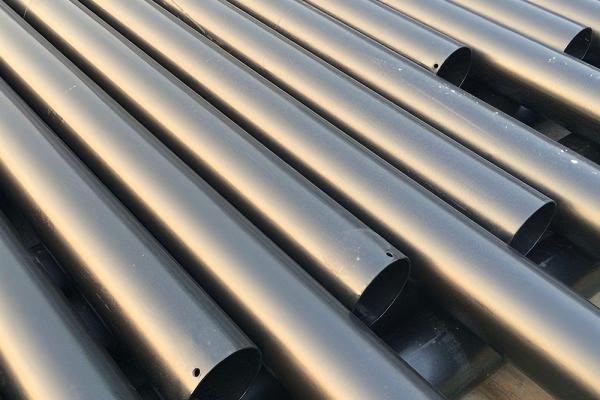

3. ASTM B165 (Standard Specification for Nickel-Copper Alloy Seamless Pipe and Tube)

Type: Seamless Pipe/Tube

Size Range:

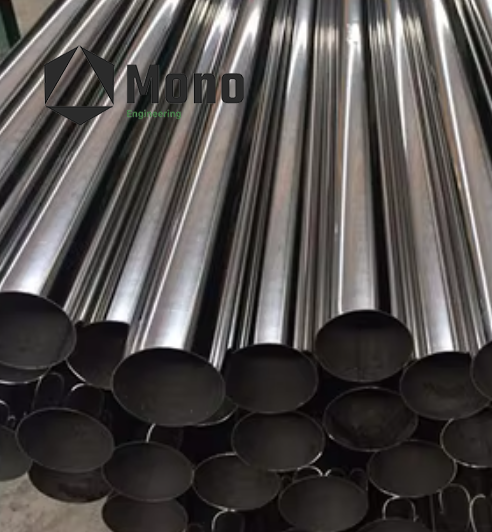

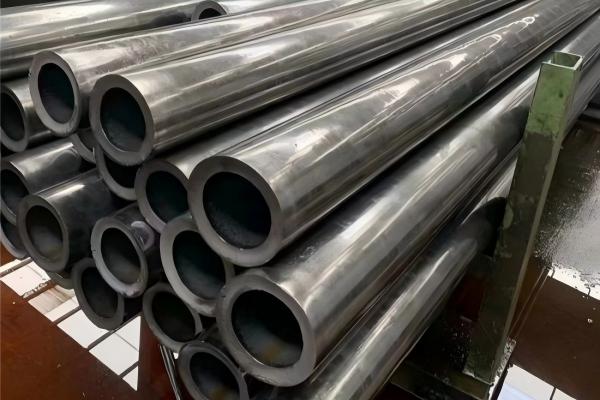

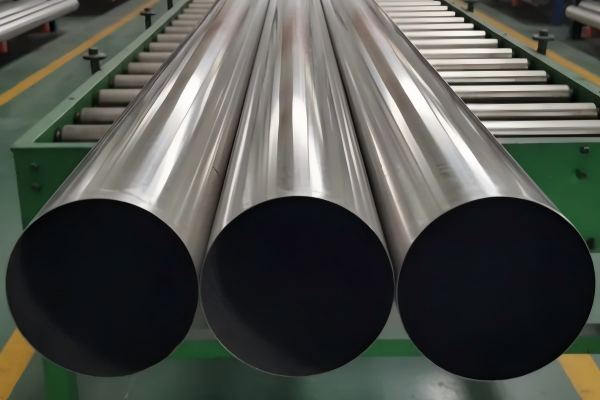

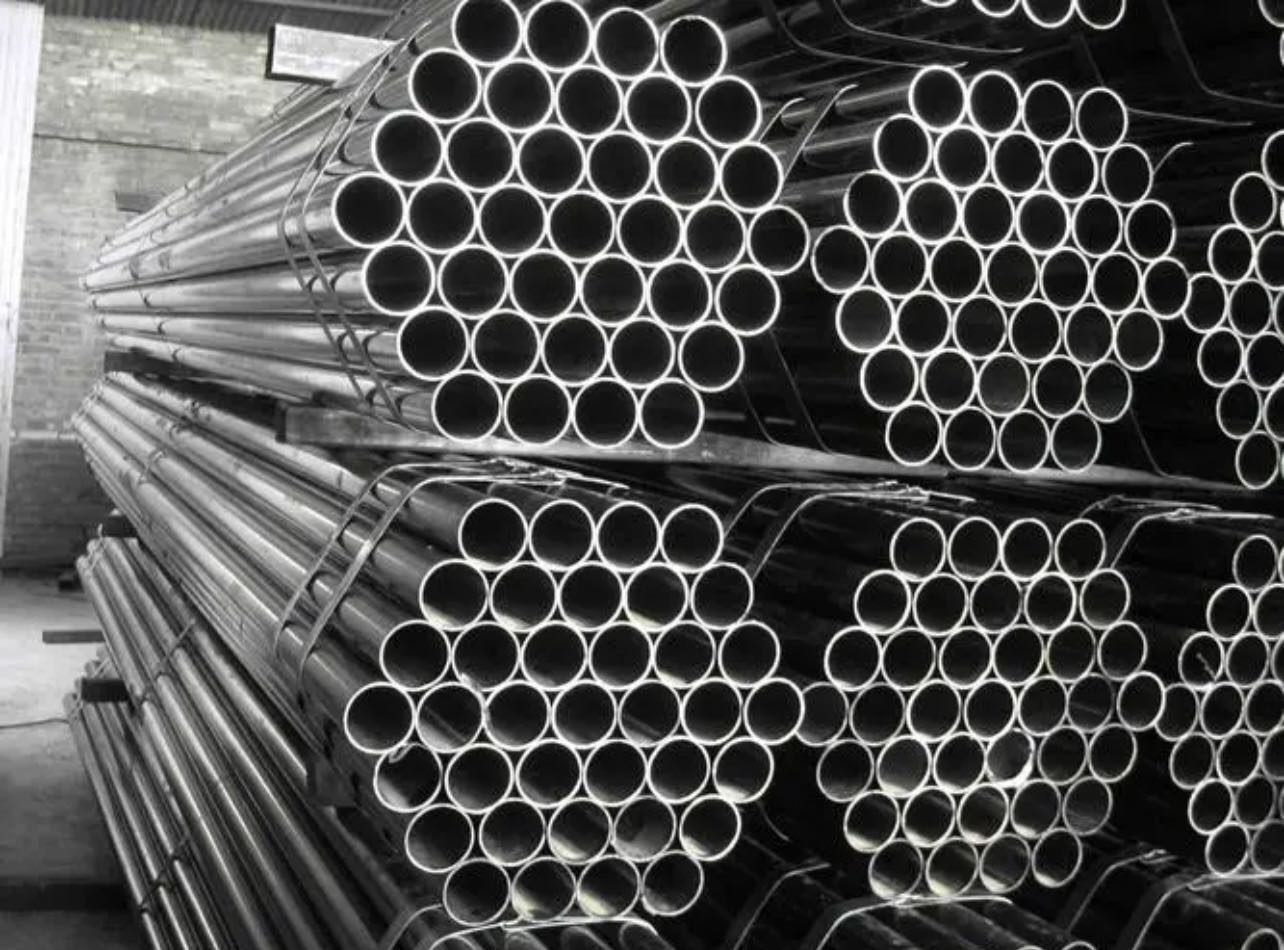

• Monel 400 Pipe: 1/8″ – 12″ NPS (10.3 – 323.8 mm OD) × Schedule 5S, 10S, 40S, 80S

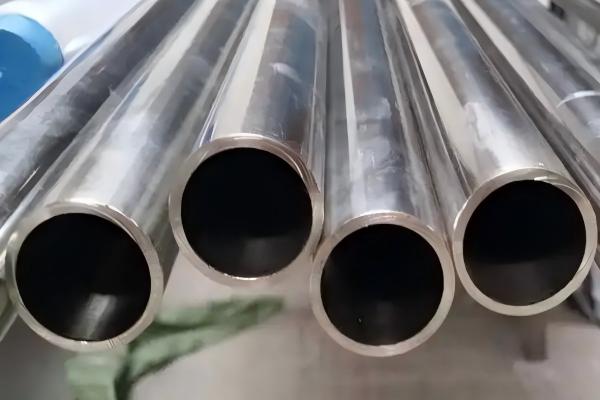

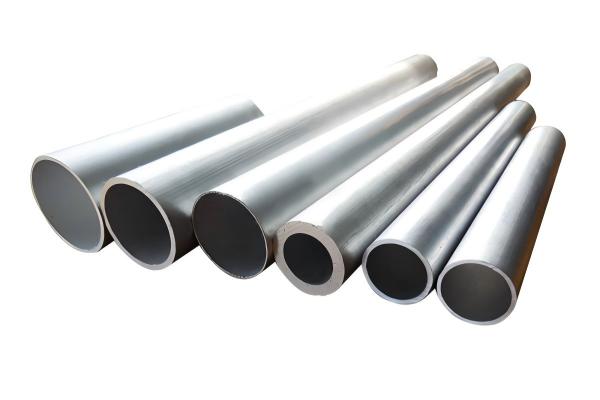

• Monel 400 Tube: 6 – 260 mm OD × 1 – 25 mm wall thickness

Surface: Annealed, Pickled, Bright

Testing: Hydrostatic test, nondestructive electric test, flattening test, chemical and mechanical test, flaring test

Applications

1. Marine Engineering & Shipbuilding

• For seawater piping, propeller shafts, pump impellers, and shipboard cooling systems, Monel 400 plate for marine engineering delivers exceptional resistance to seawater corrosion with a long proven service life. This seawater resistant Monel alloy resists pitting, crevice corrosion, and biofouling in warm, high‑chloride marine environments.

• For shipbuilding structural components and deck machinery, Alloy 400 sheet and UNS N04400 plate withstand salt spray, tidal cycling, and marine growth. Marine grade Monel 400 eliminates the need for coatings or cathodic protection in most marine services.

• Monel 400 pipe and tube are specified for seawater intake systems, ballast water lines, and firewater mains on ships and offshore platforms.

2. Chemical Processing & Hydrofluoric Acid Service

• For hydrofluoric acid (HF) alkylation units, Monel 400 pipe for chemical processing is the standard material—no other commercially available alloy offers the same combination of HF resistance and mechanical strength at reasonable cost. This acid resistant Monel 400 handles all concentrations of HF up to boiling point.

• For sulfuric acid, hydrochloric acid, and alkalis handling, Alloy 400 seamless tube provides excellent corrosion resistance in reducing environments. The nickel copper alloy is widely used in acid storage tanks, transfer lines, and reactor vessels.

• UNS N04400 bar and rod are machined into pump shafts, valve stems, impellers, and fittings for chemical process equipment.

3. Oil & Gas / Offshore Equipment

• For wellhead equipment, downhole tubing, and topside process piping in sour gas service, Monel 400 for oil and gas resists sulfide stress cracking and chloride pitting.

• For offshore platforms and subsea manifolds, ASTM B127 Monel 400 plate and pipe provide reliable performance in splash zones and submerged conditions.

• Monel 400 flanges and fittings are specified for critical connections in oil production systems.

4. Heat Exchangers & Desalination Equipment

• For shell‑and‑tube heat exchangers, condensers, and reboiler bundles, Monel 400 tube and seamless pipe offer high thermal conductivity and excellent resistance to localized attack in seawater and brine service.

• For MSF and RO desalination plants, Monel 400 for desalination equipment resists hot concentrated brine and scale formation in evaporator sections and brine heaters.

• UNS N04400 seamless tube maintains integrity under thermal cycling and corrosive fluids in power generation and chemical plants.

5. Pumps, Valves & General Industrial Equipment

• For pumps, valves, shafts, and fasteners requiring both strength and corrosion resistance, Monel 400 round bar and rod offer moderate‑to‑high strength with excellent fabricability.

• Monel 400 forgings are used for high‑integrity components in demanding service conditions.

6. Power Generation & Petrochemical

• For power generation feedwater heaters and condenser tubing, Alloy 400 tube provides long‑term reliability in aggressive cooling water environments.

• For petrochemical processing equipment including heat exchangers and process piping, ASTM B165 Monel 400 pipe handles corrosive process streams with minimal maintenance.

FAQ – Monel 400 Alloy

Q: What is the difference between Monel 400 and Inconel 600?

A: Monel 400 alloy is a nickel-copper alloy (approx. 67% Ni, 23% Cu) optimized for room temperature marine applications—seawater resistance, hydrofluoric acid, and reducing environments. Inconel 600 is a nickel-chromium-iron alloy (approx. 72% Ni, 14–17% Cr) designed for high temperature applications—oxidation resistance up to 2000°F and caustic environments. Monel 400 excels in seawater and acid handling; Inconel 600 is the choice for furnace and high‑temperature service.

Q: Is Monel 400 suitable for hydrofluoric acid service?

A: Yes. Monel 400 pipe is one of the few alloys resistant to hydrofluoric acid (HF) across all concentrations. It is the standard material for HF alkylation unit piping, vessels, and equipment—no other commercially available alloy offers the same combination of HF resistance and mechanical strength at reasonable cost.

Q: Can Monel 400 be welded without post‑weld heat treatment?

A: Yes. Monel 400 sheet and pipe can be welded using TIG, MIG, SMAW, and other standard processes. The nickel-copper alloy maintains its corrosion resistance in the as‑welded condition, and post‑weld heat treatment is generally not required for most applications. For optimal corrosion resistance, annealing may be performed if specified.

Q: What is the maximum operating temperature for Monel 400?

A: Monel 400 alloy operates effectively from cryogenic temperatures up to approximately 500°F (260°C) in continuous service. It is limited to approximately 480°C in air due to scaling. For continuous service above 500°F, Inconel 600 is recommended.

MONO Group specializes in the supply of Monel 400 and a complete range of nickel‑copper alloys for marine, chemical, and oil‑gas environments. As a China‑based manufacturer and wholesale distributor, we offer plates, sheets, round bars, seamless tubes, welded pipes, fittings, flanges, and custom‑machined parts – all produced in line with ASTM, ASME, DIN, ISO, and GB specifications. We also provide cut‑to‑size, precision machining, and surface finishing services to meet your exact needs. For detailed technical datasheets, current stock availability, or a competitive quotation, please contact us at info@monokj.com – our team is ready to respond quickly with professional advice.
