Introduction

Monel 400 is a nickel-copper alloy hardened by cold working only. It offers low corrosion rate in flowing seawater and excellent resistance to stress corrosion cracking in freshwaters, making it widely used in marine applications, offshore platforms, chemical processing, and heat exchangers. This corrosion resistant nickel alloy maintains great mechanical properties at subzero temperatures and can be used up to 1000°F. Available forms include Monel bar, sheet, plate, pipe, tube, wire, forging, flanges, fittings, and fasteners (bolts, nuts). Compliant with ASTM B127, B164, AMS 4675, NACE MR0175.

Chemical components(%)

Mechanical properties

Physical properties

Monel 400 Available Products and Standards

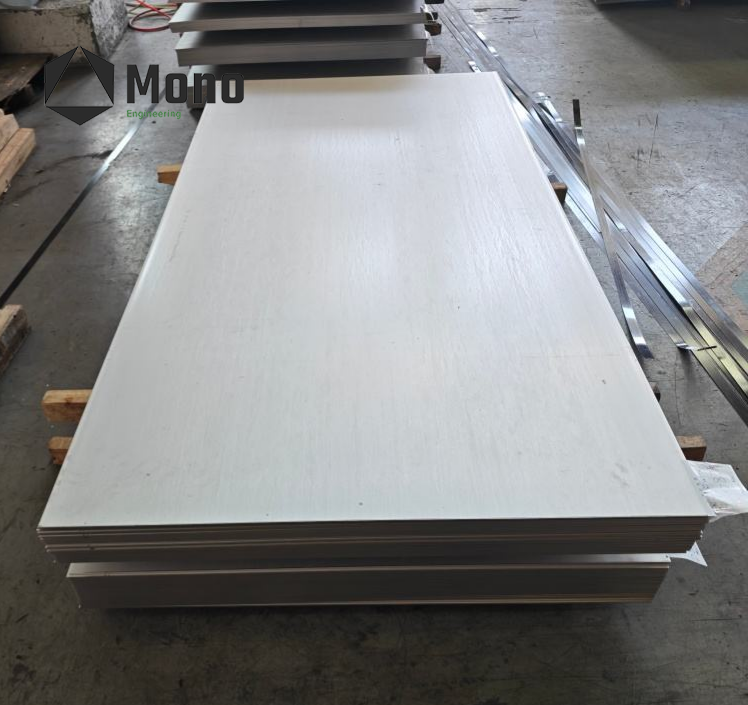

1. ASTM B127 (Standard Specification for Nickel-Copper Alloy Plate, Sheet, and Strip)

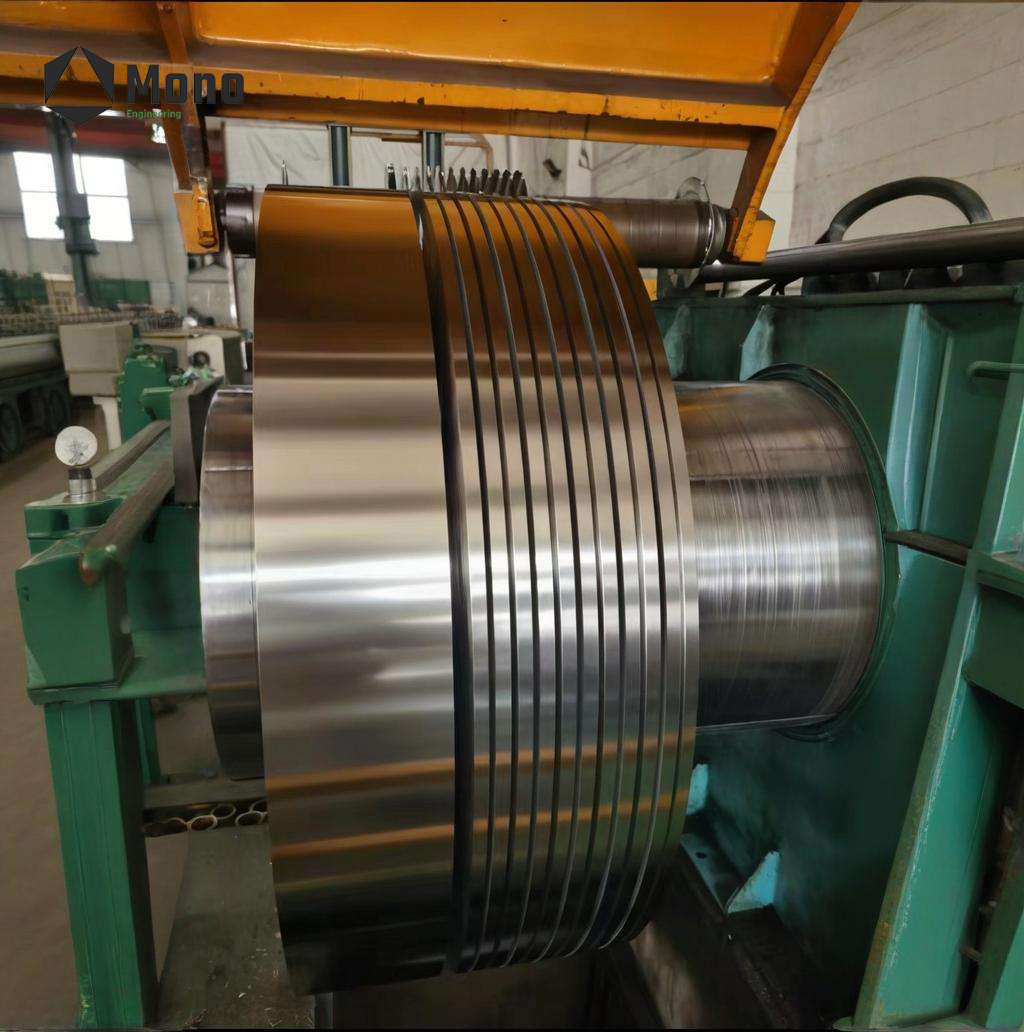

Type: Plate / Sheet / Strip

Size Range:

Sheet / Strip: 0.5 – 5.0 mm thick × up to 1000 mm wide

Plate: 5.0 – 180 mm thick × up to 3000 mm wide
Surface: Annealed, Hot rolled, Cold rolled, Pickled, Bright

Testing: Chemical analysis, tensile test, hardness, magnetic permeability (optional), corrosion test (seawater, acid resistance), dimensional inspection

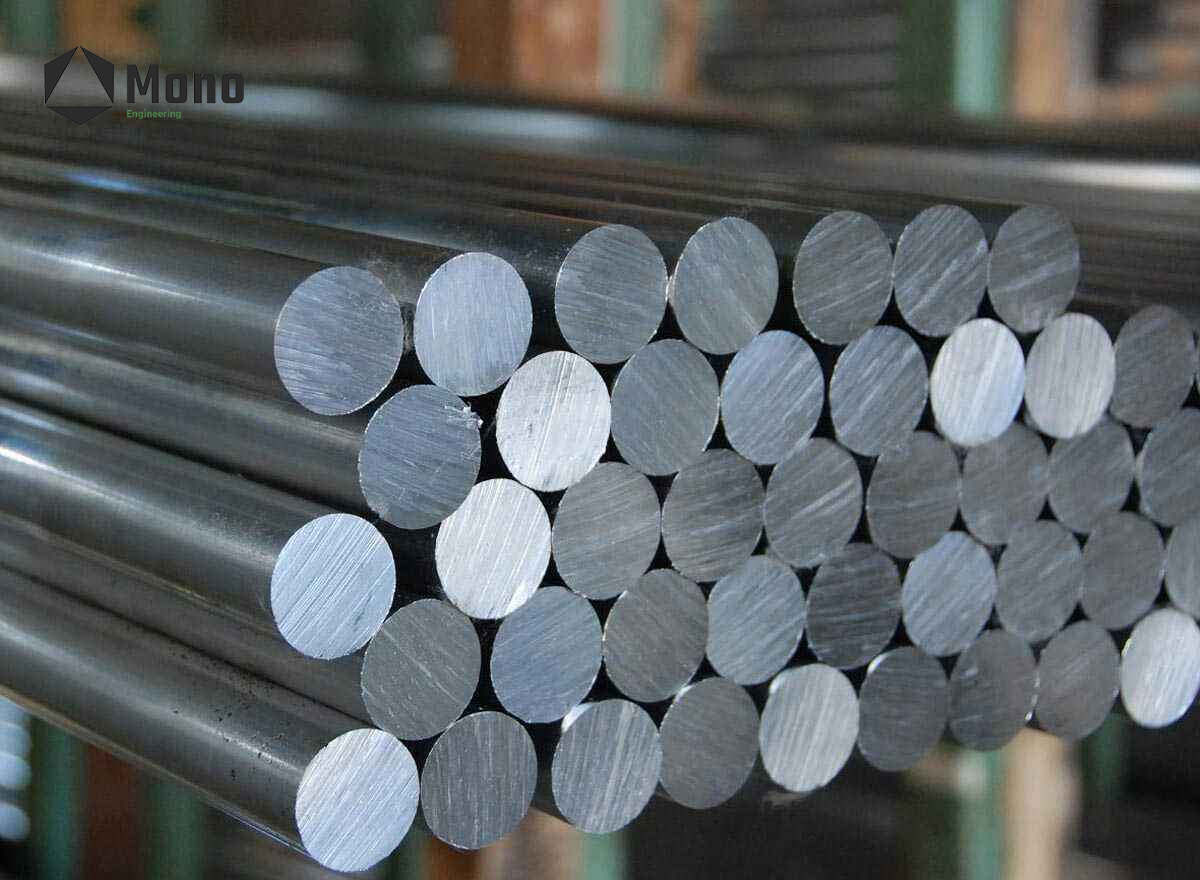

2. ASTM B164 (Standard Specification for Nickel-Copper Alloy Rod, Bar, and Wire)
Type: Bar (Round / Square / Hex / Flat), Rod, Wire

Size Range:

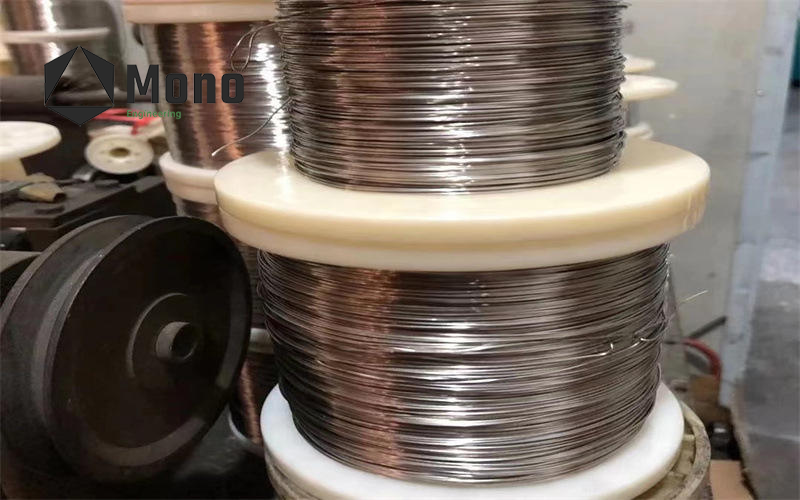

Wire: 0.01 – 15.0 mm dia (coils or straight)

Bar / Rod: 8 – 355 mm dia (cold drawn or hot rolled)
Surface: Annealed, Cold drawn, Ground, Pickled, Bright

Testing: Chemical analysis, mechanical test (tensile, yield, elongation), eddy current test, dimensional inspection

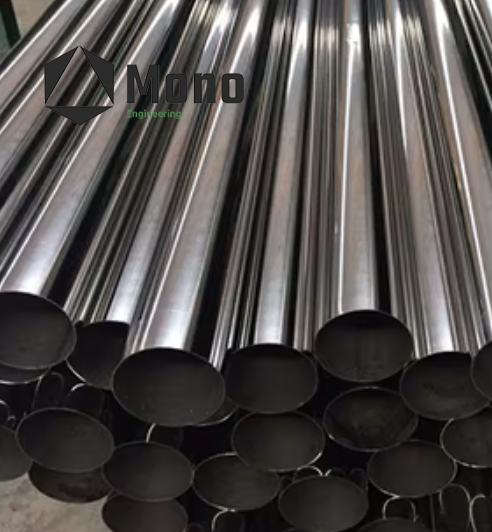

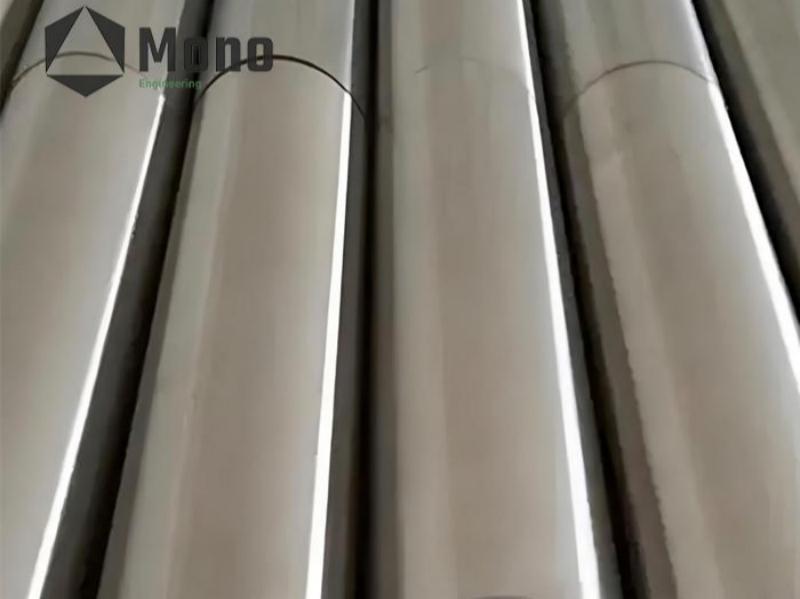

3. ASTM B165 (Standard Specification for Nickel-Copper Alloy Seamless Pipe and Tube)
Type: Seamless Pipe, Tube

Size Range:

Pipe: 1/8″ – 12″ NPS (10.3 – 323.8 mm OD) × Schedule 5S, 10S, 40S, 80S

Tube: 6 – 260 mm OD × 1 – 25 mm wall thickness
Surface: Annealed, Pickled, Bright

Testing: Hydrostatic test, nondestructive electric test, flattening test, chemical and mechanical test, flaring test

Advantages

(1)Excellent corrosion resistance: Monel 400 nickel-copper alloy offers outstanding resistance to seawater, hydrofluoric acid, sulfuric acid, and alkalis, making it a top choice for harsh corrosive environments.

(2)High strength and toughness: The material maintains high tensile strength and toughness from sub-zero temperatures up to about 480°C, providing reliable mechanical performance across a wide temperature range.

(3)Good weldability and fabricability: This nickel alloy can be easily welded, brazed, and formed into sheet, plate, bar, pipe, and fittings without risk of cracking or loss of properties.

(4)Resistance to stress corrosion cracking: Unlike many austenitic stainless steels, Monel 400 resists chloride-induced stress corrosion cracking in marine and chemical processing applications.

(5)Low magnetic permeability: The alloy exhibits low magnetic permeability, making it suitable for electronic and marine instrumentation where magnetic interference must be minimized.

Applications

(1)Marine engineering – Widely used in seawater piping systems, propeller shafts, pump shafts, valves, and fittings on ships and offshore platforms, thanks to its excellent seawater corrosion resistance.

(2)Chemical and petrochemical industry – Applied in heat exchangers, evaporators, reaction vessels, and hydrofluoric acid storage tanks where resistance to aggressive chemicals is critical.

(3)Oil and gas production – Used in downhole equipment, wellhead components, and sour gas service due to its resistance to hydrogen sulfide and chloride attack.

(4)Aerospace and defense – Employed in fuel and hydraulic lines, instrument tubing, and rocket engine components requiring high strength and corrosion resistance.

(5)Electronics and instrumentation – Suitable for springs, diaphragms, and precision components where low magnetic permeability and good mechanical properties are essential.

MONO Group is one of Superalloy, Nickel alloy, high Temperature alloy manufacturer&Supplier&Wholesaler from China,We can supply high quality alloy plate,sheet,round bar,tube.pipes,fittings,flange, and custom parts in accordance with ASTM, ASME, DIN, ISO, GB, and other international standards. For inquiries or to request a quote , please freely contact us at info@monokj.com.
