Introduction

Hastelloy C276 is a nickel-molybdenum-chromium alloy with outstanding corrosion resistance in severe environments. It resists pitting, stress corrosion cracking, and oxidizing atmospheres up to high temperatures. The low carbon content prevents carbide precipitation during welding, maintaining excellent corrosion resistance in the as-welded condition. As a leading Hastelloy C276 manufacturer and supplier, MONO Group provides a complete range of nickel alloy round bar, sheet, plate, tube, pipe, fittings, and flanges for demanding applications. This Hastelloy C276 is widely used in chemical processing, pollution control, pulp and paper production, and marine applications.

Chemical components(%)

Mechanical properties

Physical properties

Hastelloy C276 Available Products and Standard

1. ASTM B575 (Standard Specification for Hastelloy C276 Alloy Plate, Sheet, and Strip)

• Type:

Hastelloy C276 Sheet

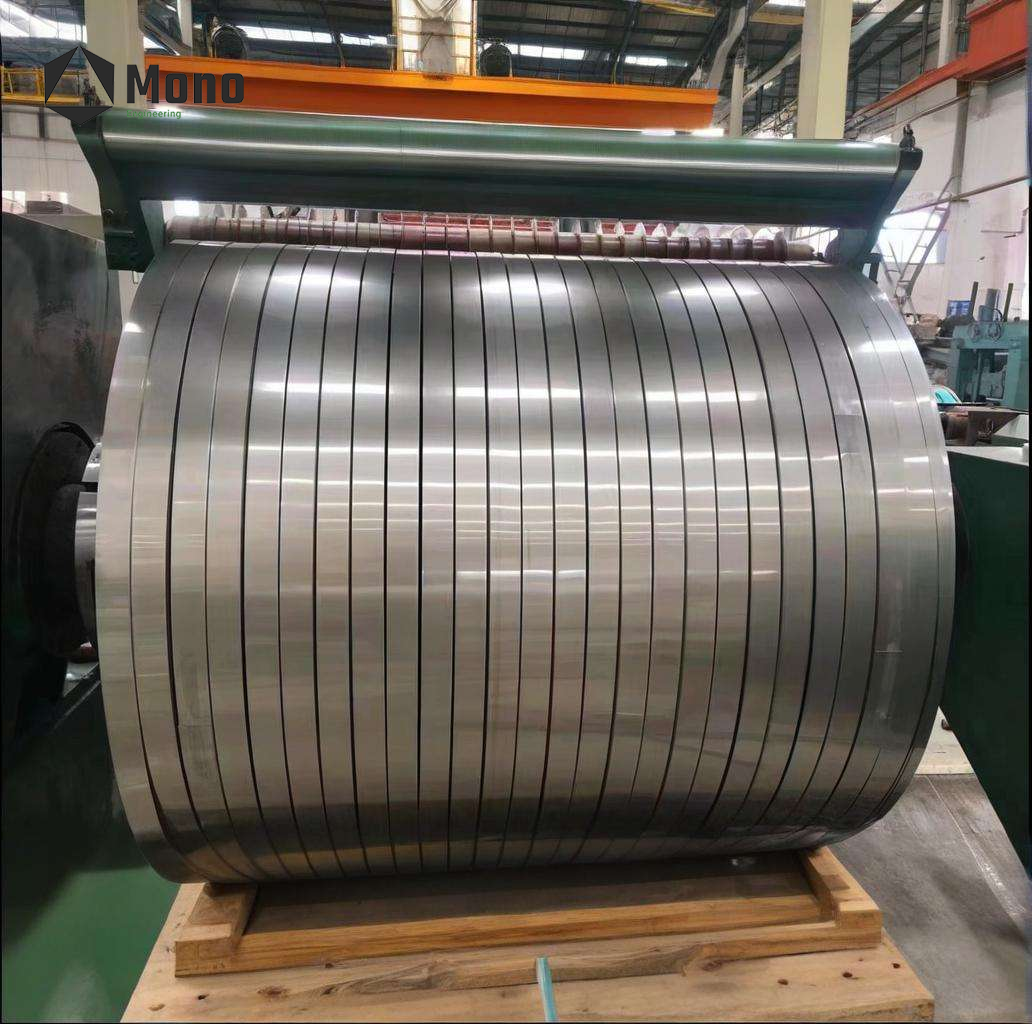

Hastelloy C276 Strip

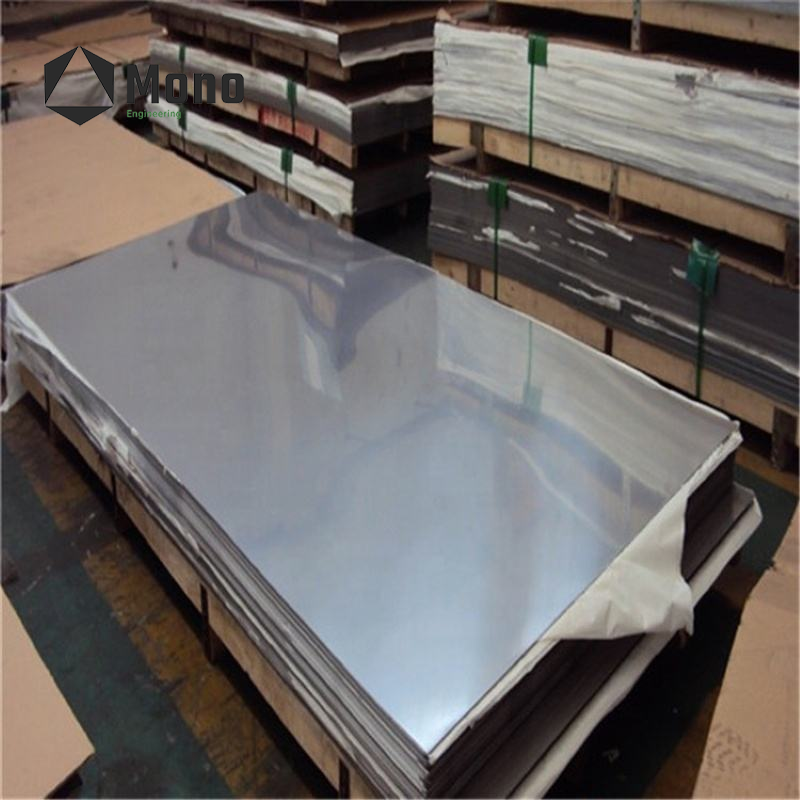

Hastelloy C276 Plate

• Size Range:

Sheet / Plate: 0.5 – 180 mm thick (cold rolled or hot rolled)

Strip: 0.01 – 5.0 mm thick × 5 – 500 mm wide

• Surface: Annealed, Bright, Pickled, Ground

• Testing: Chemical analysis, mechanical test (tensile, yield, elongation), intergranular corrosion test, hardness test, dimensional inspection

2. ASTM B574 (Standard Specification for Hastelloy C276 Alloy Rod and Bar)

• Type:

Hastelloy C276 Bar

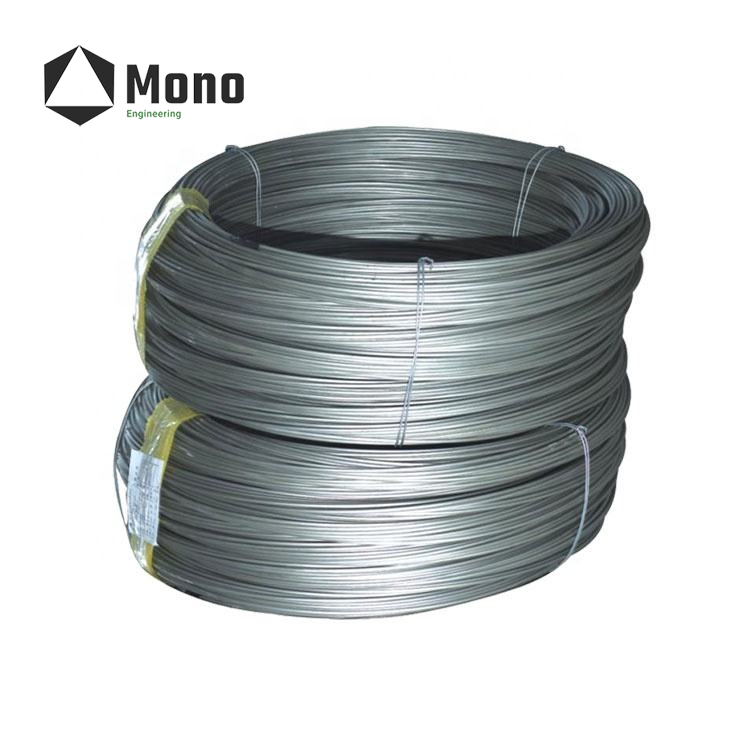

Hastelloy C276 Wire

Hastelloy C276 Round bar

• Size Range:

Bar: 8 – 355 mm dia (hot rolled or cold drawn)

Wire: 0.01 – 15.0 mm dia (coils or straight)

• Surface: Annealed, Bright, Pickled, Ground

• Testing: Chemical analysis, mechanical test (tensile, yield, elongation), hardness test, corrosion test, dimensional inspection

3. ASTM B622 (Seamless Pipe & Tube) / ASTM B619 (Welded Pipe)

• Type:

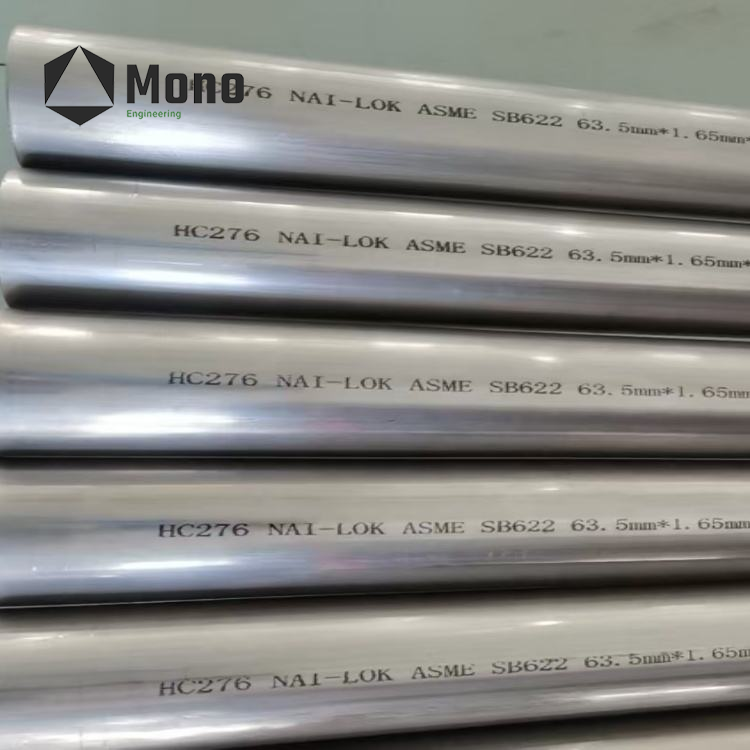

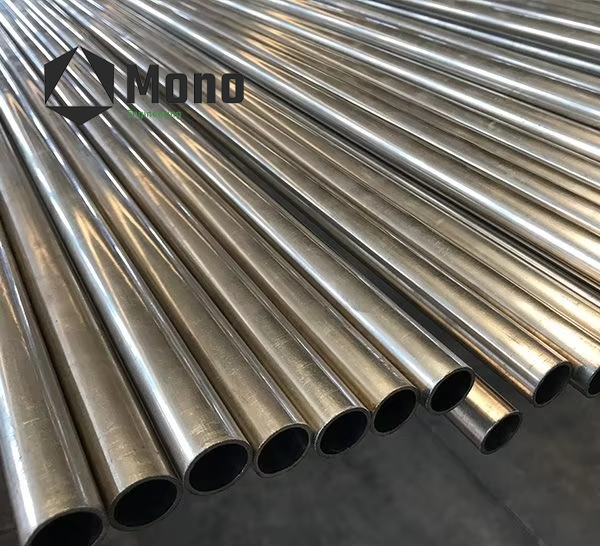

Hastelloy C276 Seamless tube

Hastelloy C276 Welded pipe

Hastelloy C276 fittings

• Size Range:

Tube OD 6 – 273 mm

Pipe OD up to 610 mm

• Surface: Annealed, Pickled

• Testing: Flattening test, hydrostatic test, eddy current test, chemical analysis, mechanical test

Advantages

(1)Excellent corrosion resistance: This Hastelloy C276 nickel alloy resists a wide range of aggressive media, including oxidizing and reducing acids, chlorides, and wet chlorine gas, making it a true corrosion resistant alloy.

(2)Outstanding pitting and crevice corrosion resistance: As a NiCrMo alloy C276, it provides exceptional protection against pitting, crevice corrosion, and stress corrosion cracking in harsh environments such as seawater, sulfuric acid, and hydrochloric acid.

(3)Good high-temperature strength: C276 nickel alloy maintains mechanical stability and oxidation resistance up to 1000°C, making this nickel based alloy suitable for high-temperature chemical processing applications.

(4)Excellent weldability and fabricability: This superalloy features good weldability and can be readily formed into sheet, plate, bar, pipe, and fittings without sensitization or loss of corrosion resistance.

(5)Versatile performance: Hastelloy alloy C276 withstands mixed acids, chloride-induced cracking, and localized attack, offering reliable long-term service in the most demanding corrosive conditions.

Applications

(1)Chemical processing industry – Widely used in reactors, heat exchangers, distillation columns, and piping systems handling sulfuric acid, hydrochloric acid, phosphoric acid, and chlorine compounds.

(2)Oil and gas sector – Applied in downhole tubing, sour gas service equipment, and offshore platforms where resistance to hydrogen sulfide (H2S) and chloride stress corrosion is critical.

(3)Pollution control – Used in flue gas desulfurization (FGD) systems, scrubbers, and ductwork for power plants and waste incinerators.

(4)Pharmaceutical and food processing – Suitable for equipment requiring high purity and resistance to corrosive cleaning agents.

(5)Aerospace and marine – Employed in jet engine parts, fuel lines, and marine exhaust systems where both corrosion resistance and moderate high-temperature strength are required.

MONO Group is one of Superalloy, Nickel alloy, high Temperature alloy manufacturer&Supplier&Wholesaler from China,We supply high-quality alloy plates, sheets, round bars, tubes, pipes, fittings, flanges, and custom parts in accordance with ASTM, ASME, DIN, ISO, GB, and other international standards. For inquiries or to request a quote , please freely contact us at info@monokj.com.
