Introduction

N06622 Alloy (UNS N06622 / Inconel 622 / Hastelloy C22) is a nickel‑based alloy with nickel as the main component. Thanks to the strengthening effect of molybdenum and niobium solid solution in the nickel‑chromium matrix, it offers ultra‑high strength and extraordinary fatigue resistance from low temperatures up to 1093°C. Alloy C22 round bar, sheet, plate, strip, wire, seamless tube, pipe, forging, and fastener are widely used in the aviation industry, flue gas desulfurization, chemical reactors, heat exchangers, and pollution control equipment. The high chromium and molybdenum content provides excellent corrosion resistance in many corrosive media, from highly oxidizing to general corrosive environments. Inconel 622 also shows strong anti‑corrosion performance in chloride‑contaminated media such as seawater, geothermal water, neutral salt, and brine. Hastelloy C22 welding wire and filler rod ensure reliable joints. Available in cold rolled sheet, hot rolled bar, spring wire, flange, and fitting etc.

Chemical components (%)

Physical properties

Hastelloy C22 Available Products and Standard

1. GB/T 15007 (Nickel and Nickel Alloy Plate, Strip, and Foil)

Domestic Grade: NS3308 (GB/T 15007) / Hastelloy C22 equivalent

Type: Sheet / Plate / Strip / Wire / Tube / Bar

Size Range:

Wire: 0.1 – 15.0 mm dia

Strip: 0.05 – 5.0 mm thick × 5 – 500 mm wide

Round Bar: 8 – 355 mm dia

Sheet / Plate: 0.5 – 180 mm thick

Seamless Tube / Pipe: Custom sizes available

Surface: Annealed, Bright, Pickled, Ground

Testing: Chemical analysis, mechanical test (tensile strength, yield strength, elongation), hardness test, intergranular corrosion test, pitting corrosion test, dimensional inspection

2. ASTM B574 (Standard Specification for  Inconel 622 Alloy Rod and Bar)

Type: Round Bar / Rod / Wire

Size Range:

Round Bar: 8 – 355 mm dia (hot rolled or cold drawn)

Wire: 0.1 – 15.0 mm dia (coils or straight)

Surface: Annealed, Pickled, Ground, Turned, Bright

Testing: Chemical analysis, mechanical test (tensile, yield, elongation), hardness test, ultrasonic test, dimensional inspection

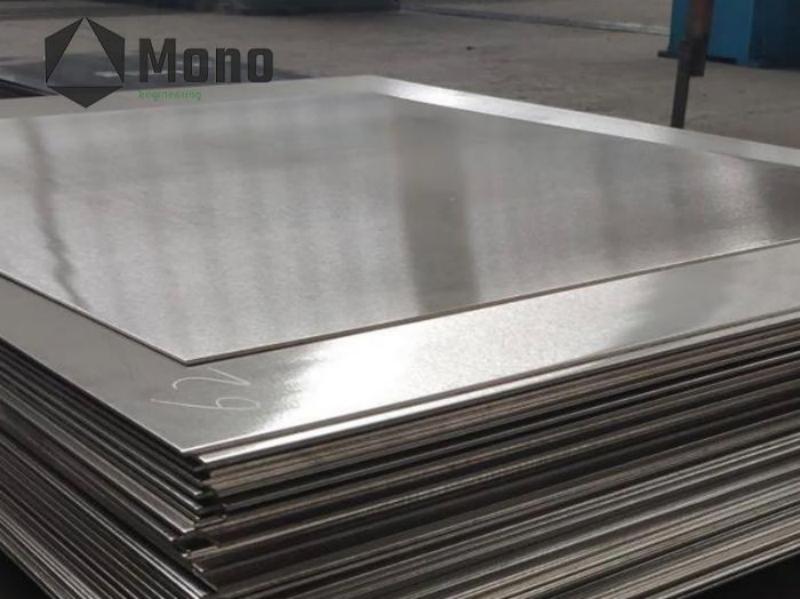

3. ASTM B575 (Standard Specification for  Inconel 622 Alloy Plate, Sheet, and Strip)

Type: Sheet / Plate / Strip

Size Range:

Sheet / Plate: 0.5 – 180 mm thick (hot rolled or cold rolled)

Strip: 0.05 – 5.0 mm thick × up to 500 mm wide (coils)

Surface: Annealed, Pickled, Bright, Polished

Testing: Chemical analysis, mechanical test (tensile, yield, elongation), hardness test, intergranular corrosion test, pitting corrosion test, dimensional inspection-11-28

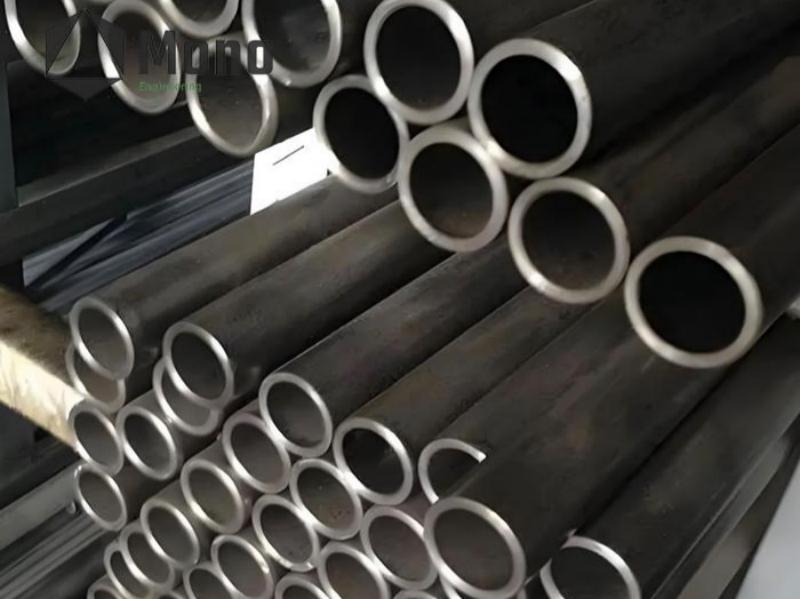

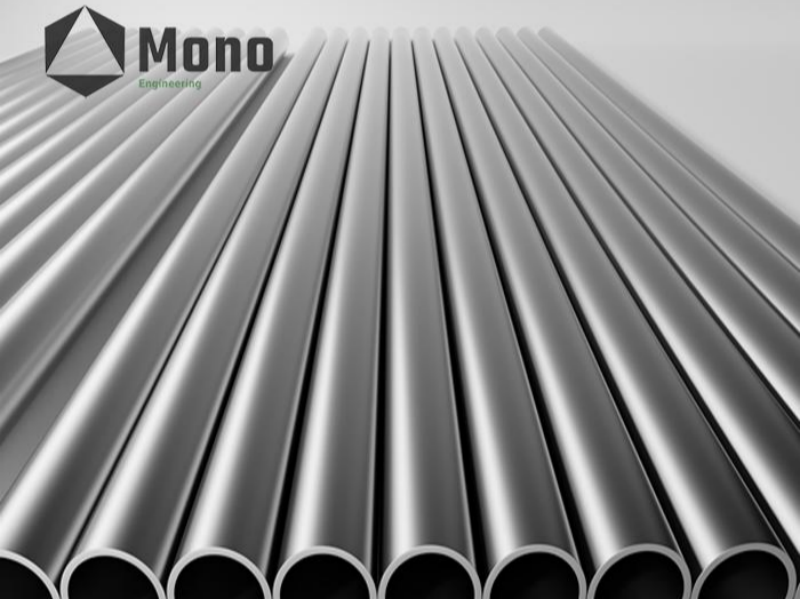

4. ASTM B622 (Standard Specification for Seamless Nickel and Nickel-Cobalt Alloy Pipe and Tube)

Type: Seamless Pipe / Seamless Tube

Size Range:

Seamless Pipe: 6 – 610 mm OD × 1 – 50 mm wall thickness

Seamless Tube: Custom sizes

Surface: Annealed, Pickled, Bright

Testing: Chemical analysis, mechanical test (tensile, yield, elongation), hydrostatic test, eddy current test, dimensional inspection

Advantages

(1)Outstanding corrosion resistance: Hastelloy C22 round bar and seamless tube resist pitting, crevice corrosion, and stress corrosion cracking in aggressive media, including seawater, geothermal water, and brine.

(2)Ultra‑high strength and fatigue resistance: Alloy C22 sheet and plate maintain ultra‑high strength and extraordinary fatigue resistance from low temperatures up to 1093°C, ideal for aviation and high‑stress applications.

(3)Excellent performance in oxidizing and reducing environments: High chromium and molybdenum content gives N06622 pipe and fitting superior corrosion resistance in both highly oxidizing and general corrosive conditions.

(4)Good weldability: Hastelloy C22 welding wire and filler rod provide reliable joint performance for complex chemical reactors and pollution control equipment.

(5)Versatile product forms: Inconel 622 forging, flange, strip, wire, and fastener are available for flue gas desulfurization, heat exchangers, and sour gas service.

Applications

(1)Aviation industry – Hastelloy C22 round bar and sheet are used in high‑temperature engine components and airframe parts requiring ultra‑high strength and fatigue resistance.

(2)Flue gas desulfurization (FGD) – Alloy C22 seamless tube and plate serve in scrubbers, ductwork, and stack liners for power plant pollution control.

(3)Chemical processing – N06622 pipe, fitting, and reactor components handle aggressive media such as chlorine dioxide, mixed acids, and hot chloride solutions.

(4)Heat exchangers and evaporators – Inconel 622 seamless tube and strip are specified for shell‑and‑tube heat exchangers, crystallizers, and evaporators in corrosive environments.

(5)Offshore and marine – Hastelloy C22 forging, flange, and fastener resist seawater and brine corrosion in subsea equipment, platform piping, and desalination plants.

(6)Waste treatment and incineration – Alloy C22 wire and welding wire are used in scrubber nozzles, expansion joints, and incinerator liners for hazardous waste processing.
